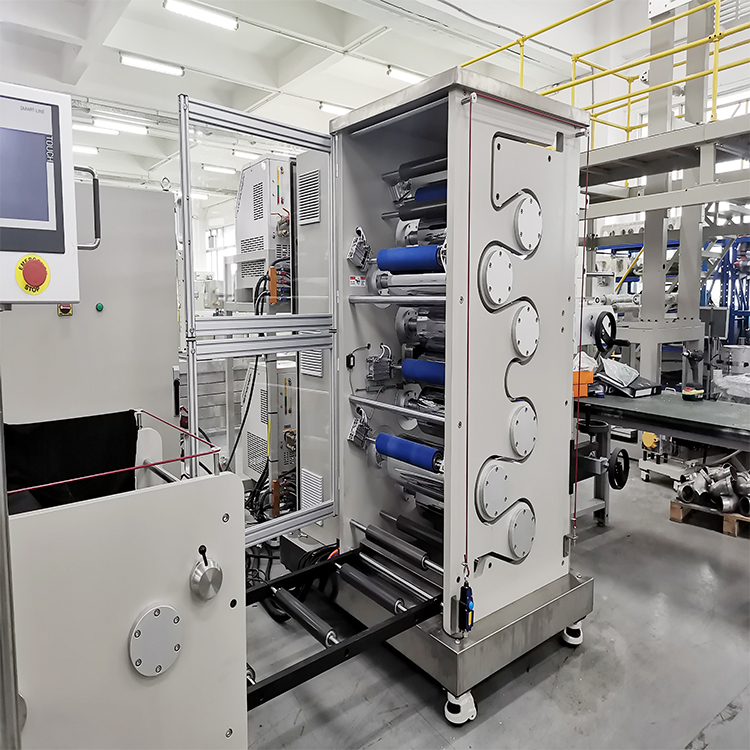

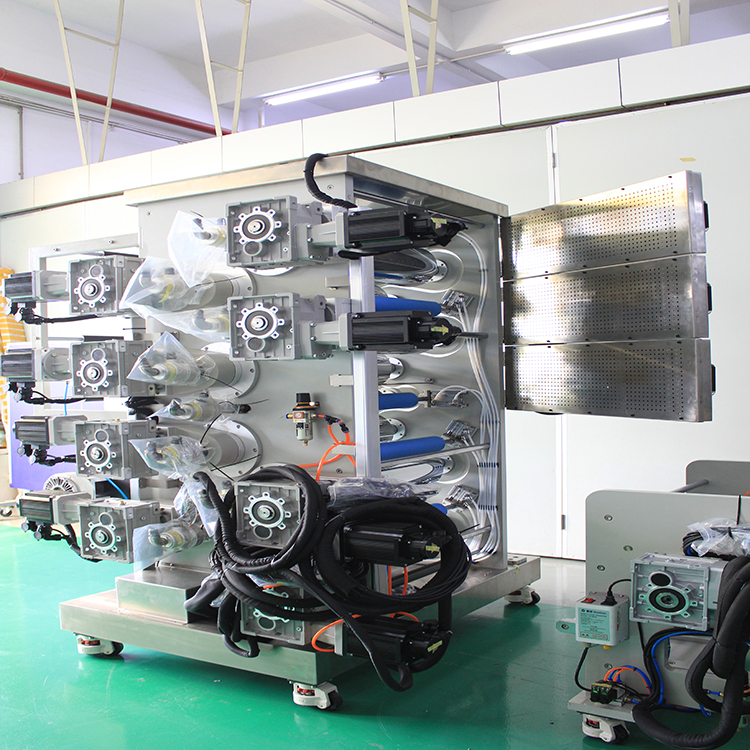

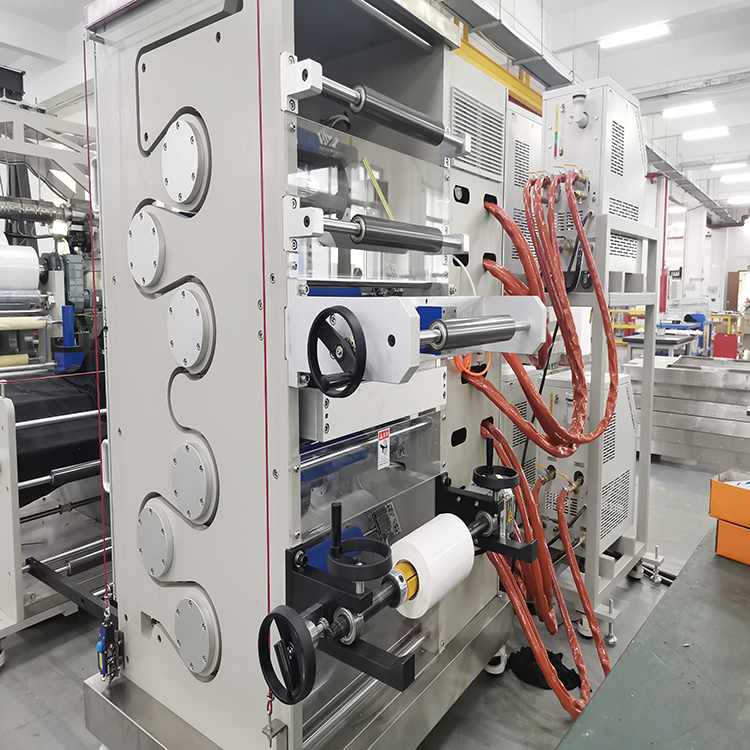

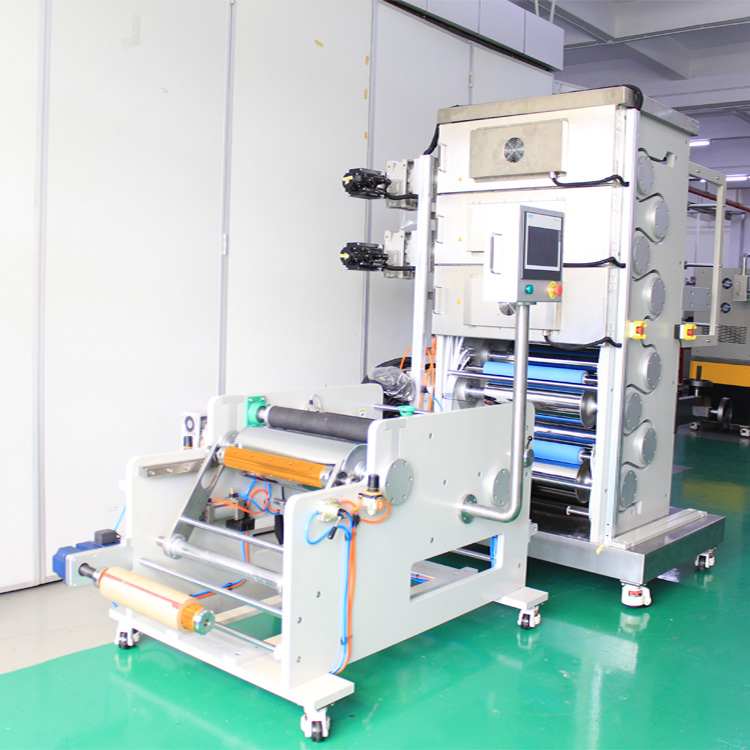

Laboratory Film MDO Stretching Machine FOVU-35/02
Application
ØR&D of new film products
ØFormulation design of novel film materials
ØMDO stretching performance testing and experiments.
ØProcess research and parameter optimization for film MDO stretching.
Technical Data
Model | FOVU-35/02 |
Serial No. | FOP-002 |
Applicable Materials | PE, PP, PET, PVDF, etc |
Stretching Points | 2 |
Max. Stretching Ratio | 10:1 (adjustable) |
Stretching Gap | 2.5 mm-200 mm |
Roller Face Width | 350 mm |
Outlet Line Speed | 0-30 m/min |
Temperature Control Range | RT - 160°C |
Temperature Accuracy | ±1℃ |
Power Supply | 3-phase 5-wire 380V±10%, 50 Hz |
Gas Supply | Compressed air: 6-8bar, dry, oil-free |
Operating Environment | 10–40℃; ≤80% RH (non-condensing) |
Rated Power | Approx. 48 kW(incl. liquid medium roller temp. regulator) |
Dimensions (L×W×H) | 2880 mm×2720 mm×2000 mm |
Net Weight | Approx.5000 kg |
Note: The parameters are subject to change without prior notice.

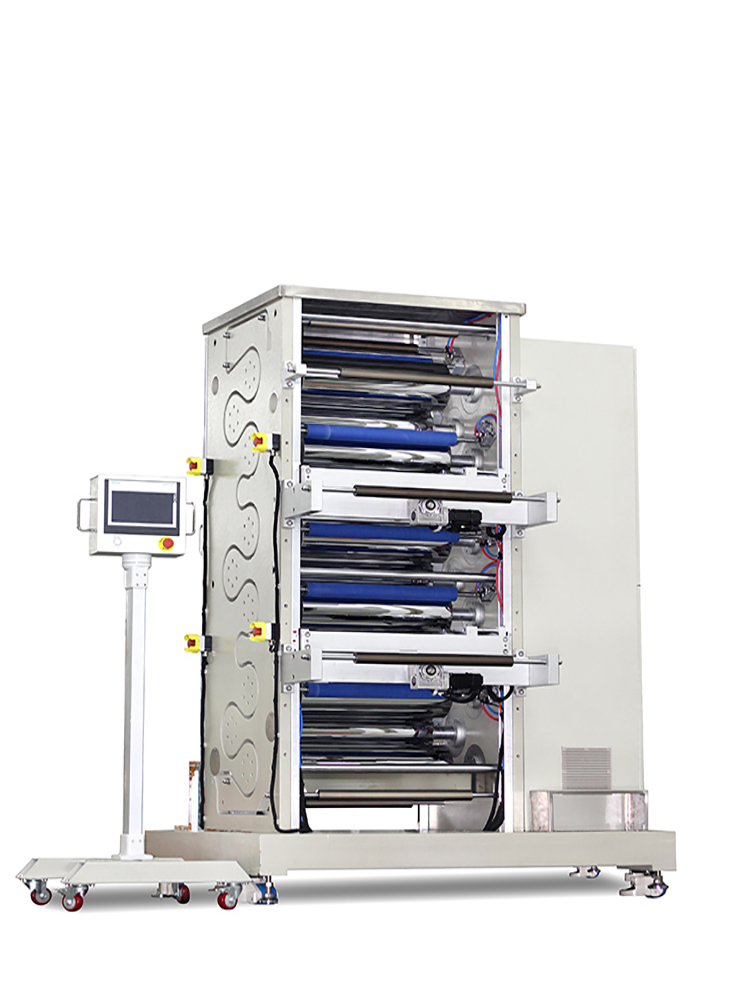

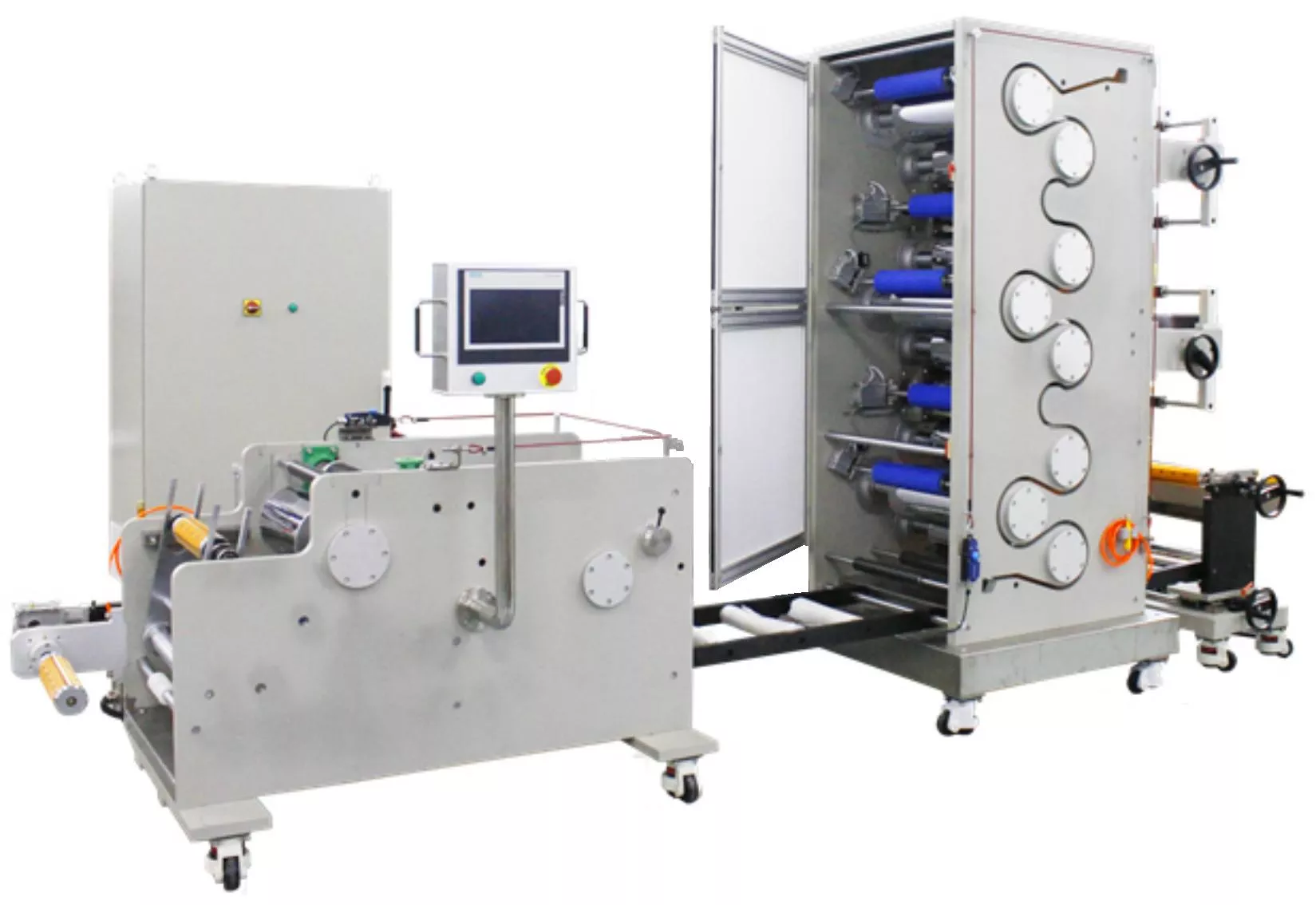

POTOP MDO film stretching machine
