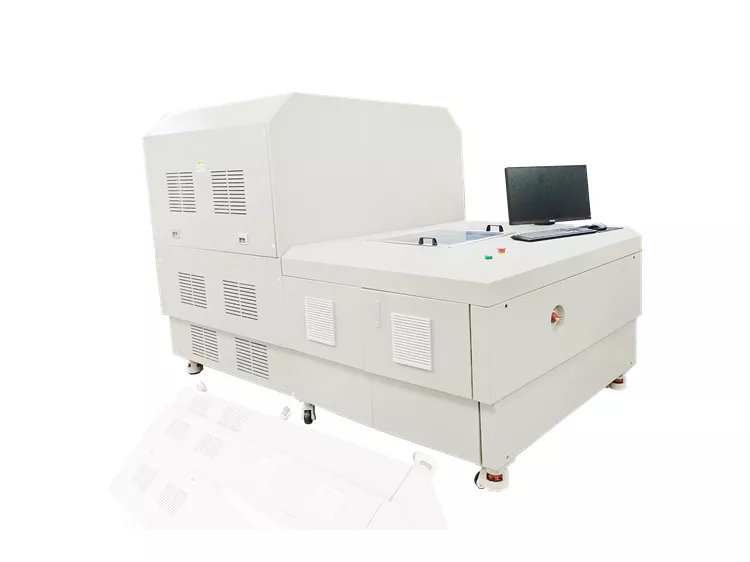

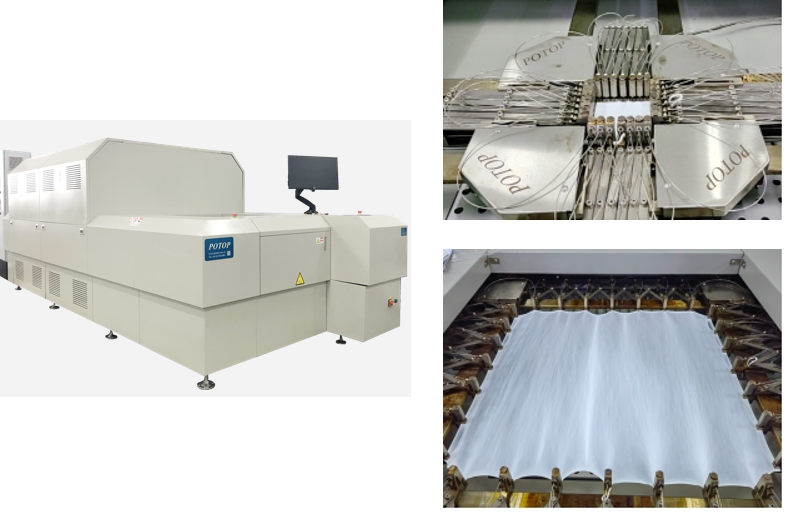

Bi-axial Film Stretching Test Machine FOHI-10 High Temperature Version

Model

FOHI-10

Applicable materials

PEI 、PPS、PEEK 、PE、PP、PET、PA、PVDF,etc.

Sample thickness

0.02-2mm

Sample size

Min.95mm×95mm;   Max.110 mm×110 mm

Stretchingratio

10:1（min. sample）

Stretching speed

0-500mm/s (stepless variable)

Stretchingforce

2000N

Operating temperature

Room temperature-350°C

Working voltage

3φ380VAC±10%，1φ220VAC±10%，50Hz

Rated power

Approx.100kW

L x W x H

4000mm×2100mm×1900mm

Weight

Approx.3700kg
