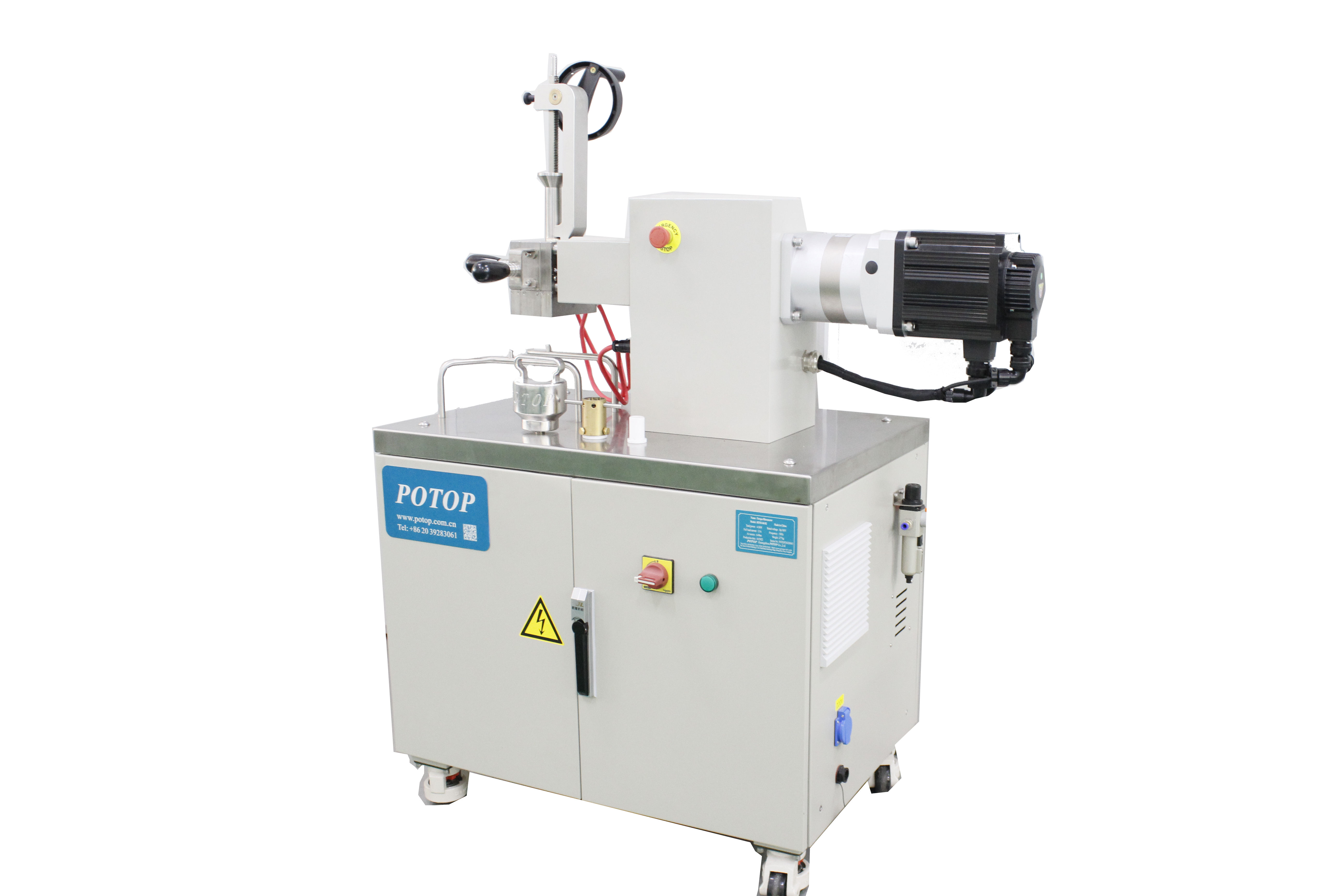

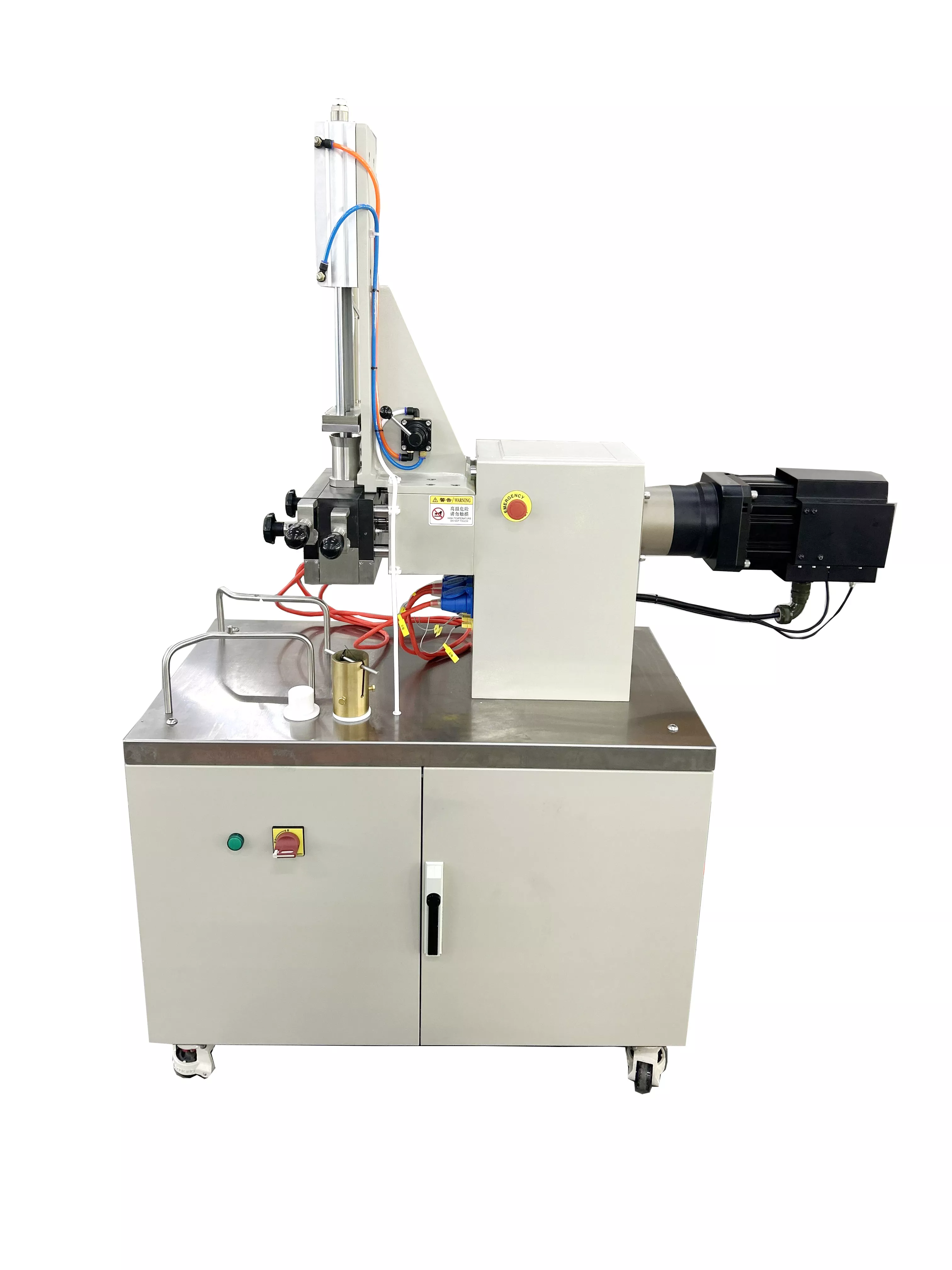

Hot Sell Torque Rheometer RTOI-06/02
Polymer material rheological testing equipment--POTOP Torque Rheometer
Hot sell model: RTOI-06/02
Torque Rheometer Function
Measure key rheological data of polymers such as torque and melt flow rate under different temperatures, rotational speeds, and formulations.
Simulate actual processing conditions (such as extrusion and injection molding) to reproduce the material behavior during processing.
Evaluate the material's processing stability, degree of crosslinking, degradation, and formulation compatibility.
Rotor type | Application |
 | For mixed thermoplastic materials, such as polyolefin, polyvinyl chloride, engineering plastics, etc. |
For mixing elastomers, which can also be used to mix powders into thermoplastic materials. More common applications in the rubber industry | |
Thermoplastics, less axial distribution, ceramic composites, food ( viscous, high torque ) | |
Food applications and plastic aerosols (with torque limitations) |
Main parameters
Model | RTOI-06/02 |
Applicable material | Plastic and rubber |
Mixing chamber volume | 55ml |
Rotating speed | 180rpm |
Rotor | Standard configuration:Roller Optional choice: Banbury、Cam、Sigma、Delte |
Torque measurement range | 0-200Nm |
Torque measurement range accuracy | 0.5%F.S |
Operating temperature | Room temperature-350°C
|
Main motor power | 3KW |
Working voltage | Three-phase 380VAC±10%,single-phase 220VAC±10%,50Hz |
Rated power | Approx. 4.5KW |
L x W x H | 1180mm×610mm×1580mm |
Weight | Approx.250kg |

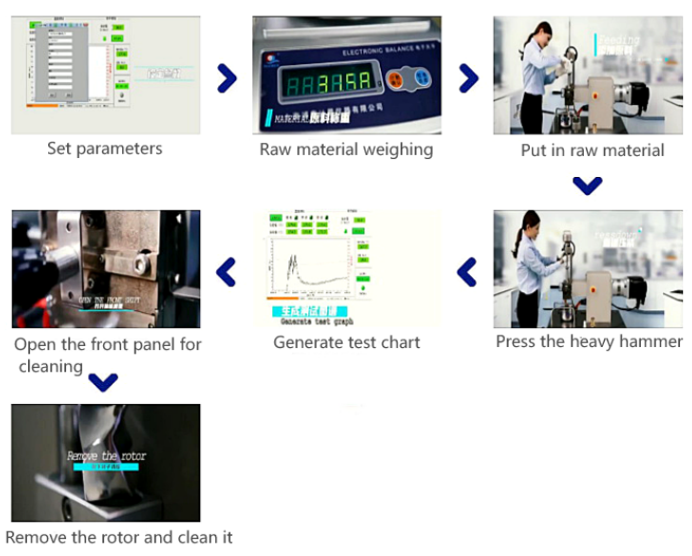

Test procedures
