Laboratory Three-layer Film Blowing Machine FBCI-20/03

Laboratory Three-layer Film Blowing Machine FBCI-20/03

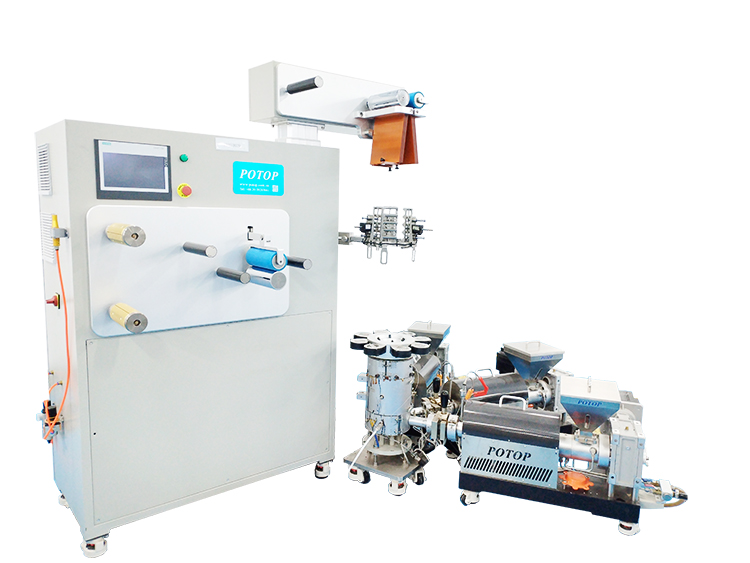

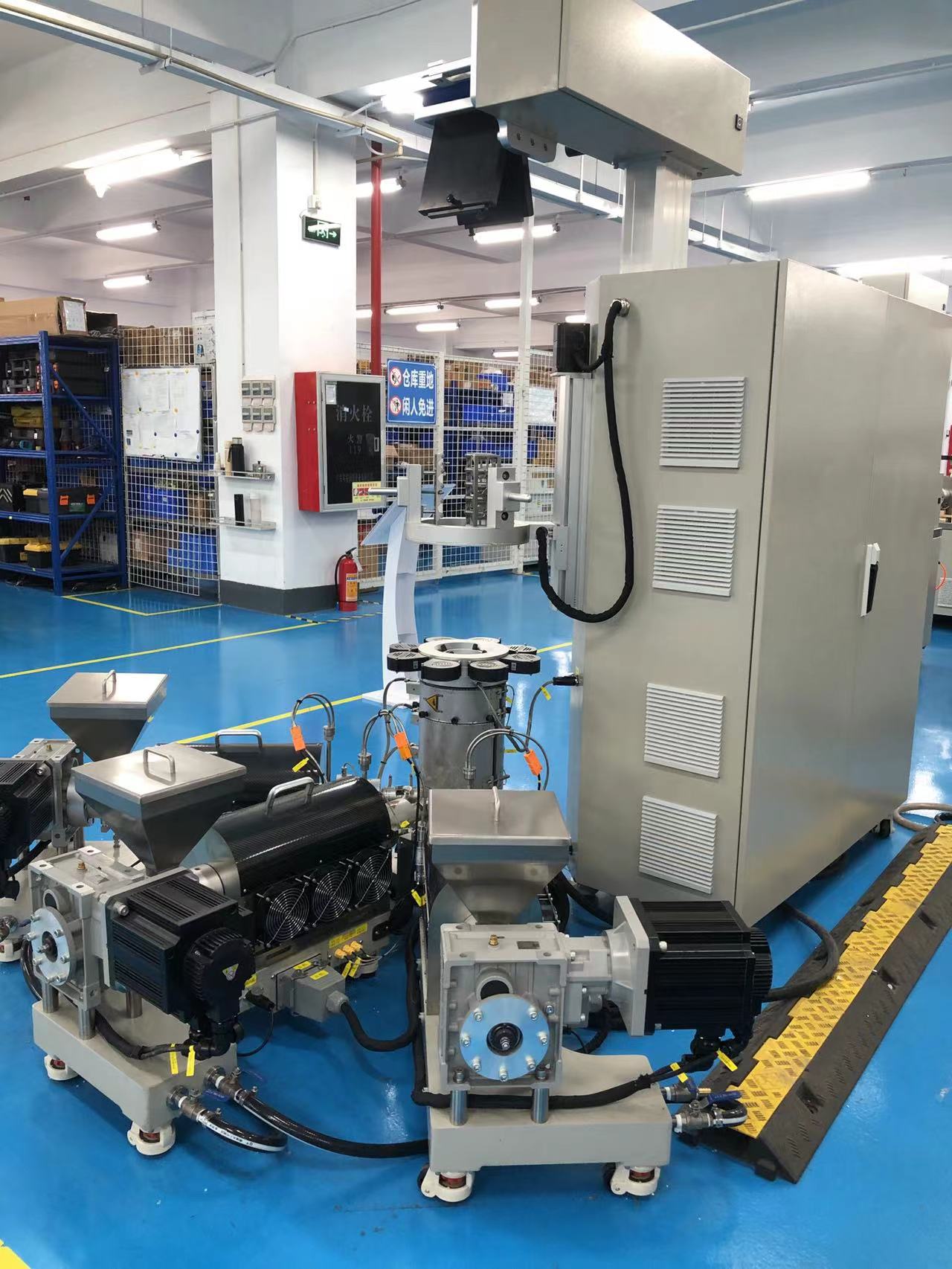

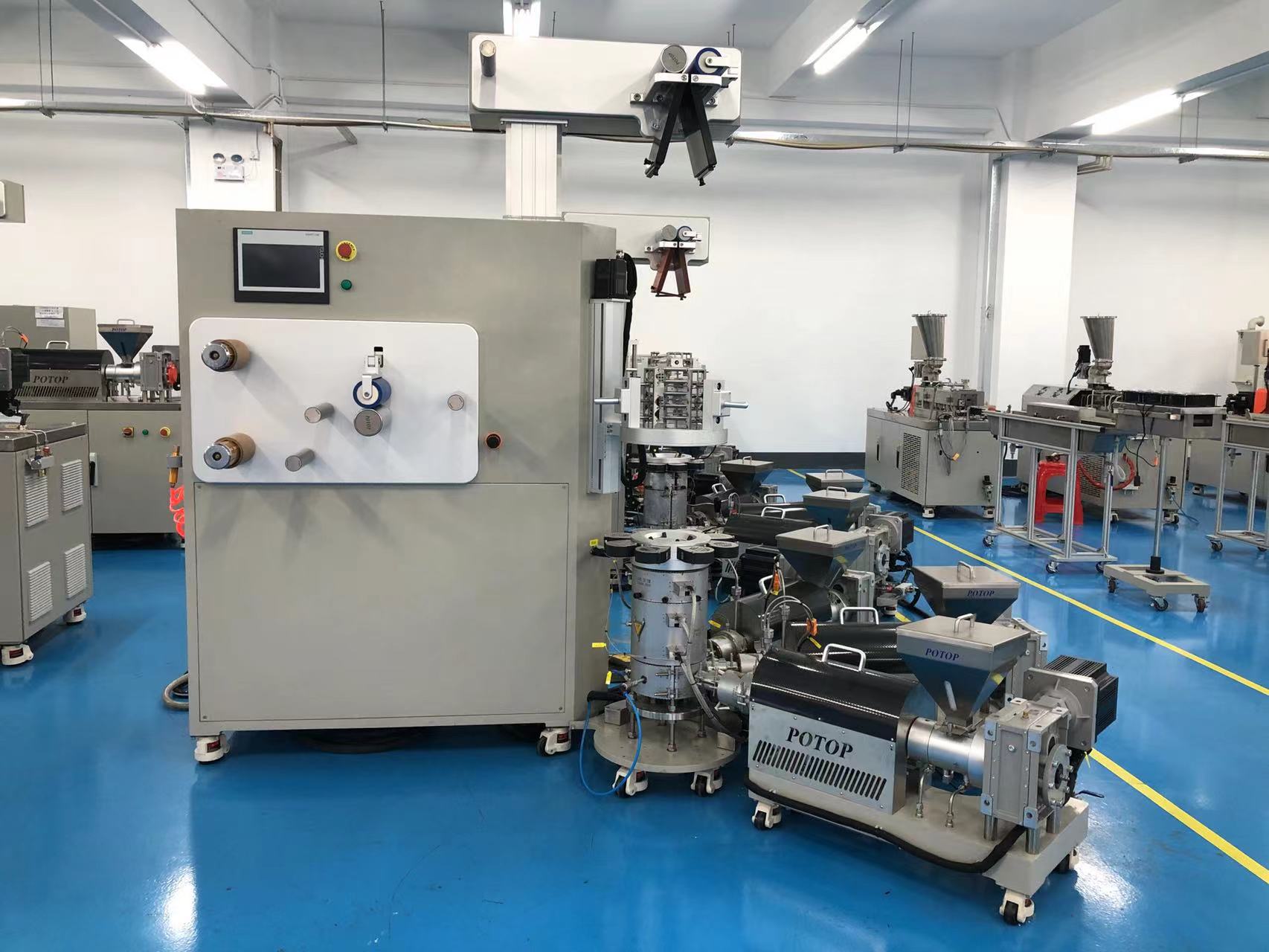

Small Three-Layer Blown Film Machine FBCL-20/03 consists of three Φ20mm single-screw extruders, a three-layer co-extrusion die head (ABC three-layer spiral flow channel, layer ratio: 1:1:1),   blown film auxiliary equipment, and a PLC centralized control system.

The three extruders are independently driven, melting and plasticizing different (or identical) polymer raw materials, which are then precisely distributed through flow channels to the co-extrusion die head.

The materials are extruded through an annular gap to form a tube blank, which is then inflated by compressed air and drawn by traction rollers.

After cooling and shaping by an air ring, flattening by a collapsing frame, and traction winding, the target film product is obtained.

Product Features

Ø High-precision servo motor-driven extruder screw with continuous variable speed control for stable plasticization and uniformity

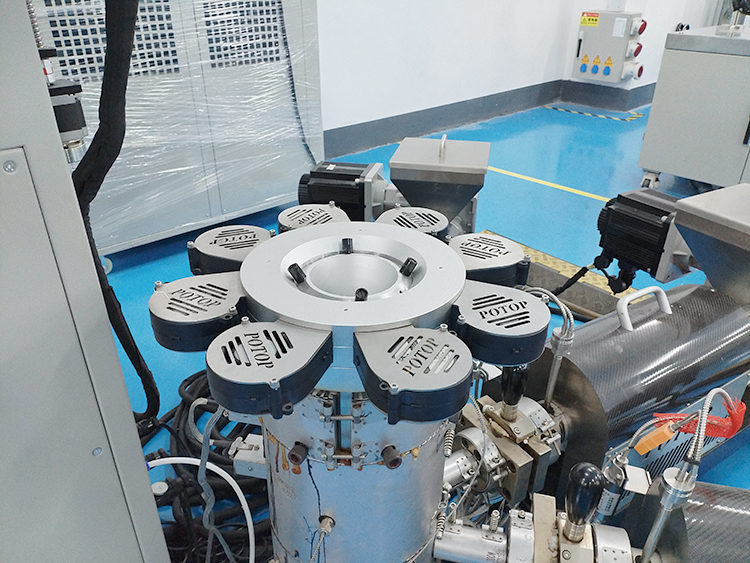

Ø Digitally optimized co-extrusion die featuring streamlined flow channels (zero dead zones) to ensure homogeneous material distribution

Ø Electrically adjustable film frame for simplified film threading and process fine-tuning

Ø Patented pressure vector control air ring technology for energy efficiency and ultra-low noise operation

Ø Advanced bubble stabilization system (small diameter) to maintain consistent film layflat width

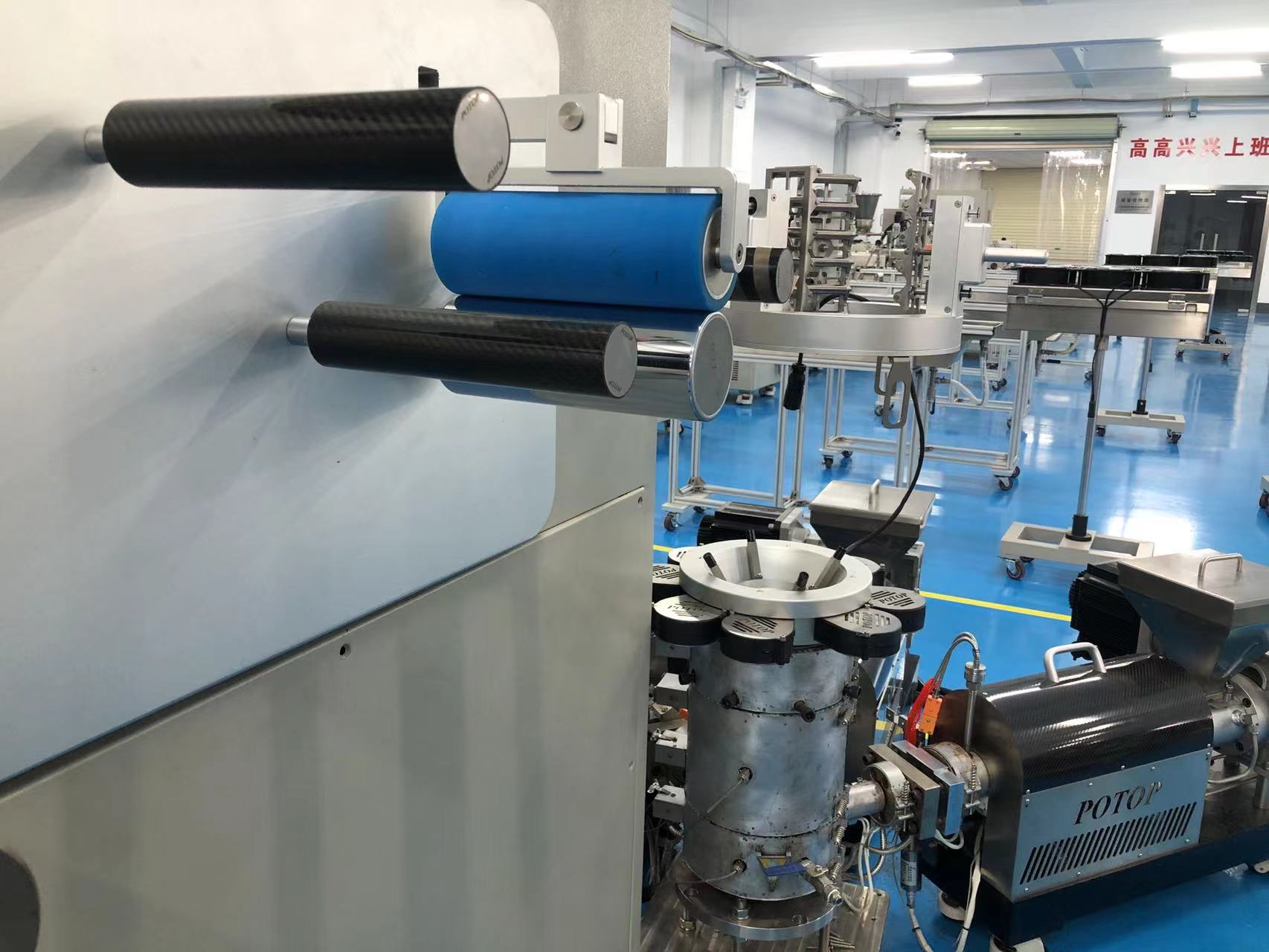

Ø Servo-driven haul-off system ensures precise and stable longitudinal film speed control

Ø Industrial-grade PLC & HMI integration with intuitive touchscreen interface for reliable operation and seamless user interaction

Ø Real-time data acquisition & visualization (pressure, temperature, line speed，etc) for enhanced process monitoring

Ø Customizable layer configuration (up to 7 layers) to meet diverse R&D needs

Application

Ø Preparation of multilayer blown tubular films

Ø Optimization of multi-layer blown film production process

Ø Polymer material blown film performance test

Ø R&D of new material formulas

Note: The parameters are subject to change without prior notice.

POTOP three-layer film blown machine

testing video --PA6,PA66
